Description

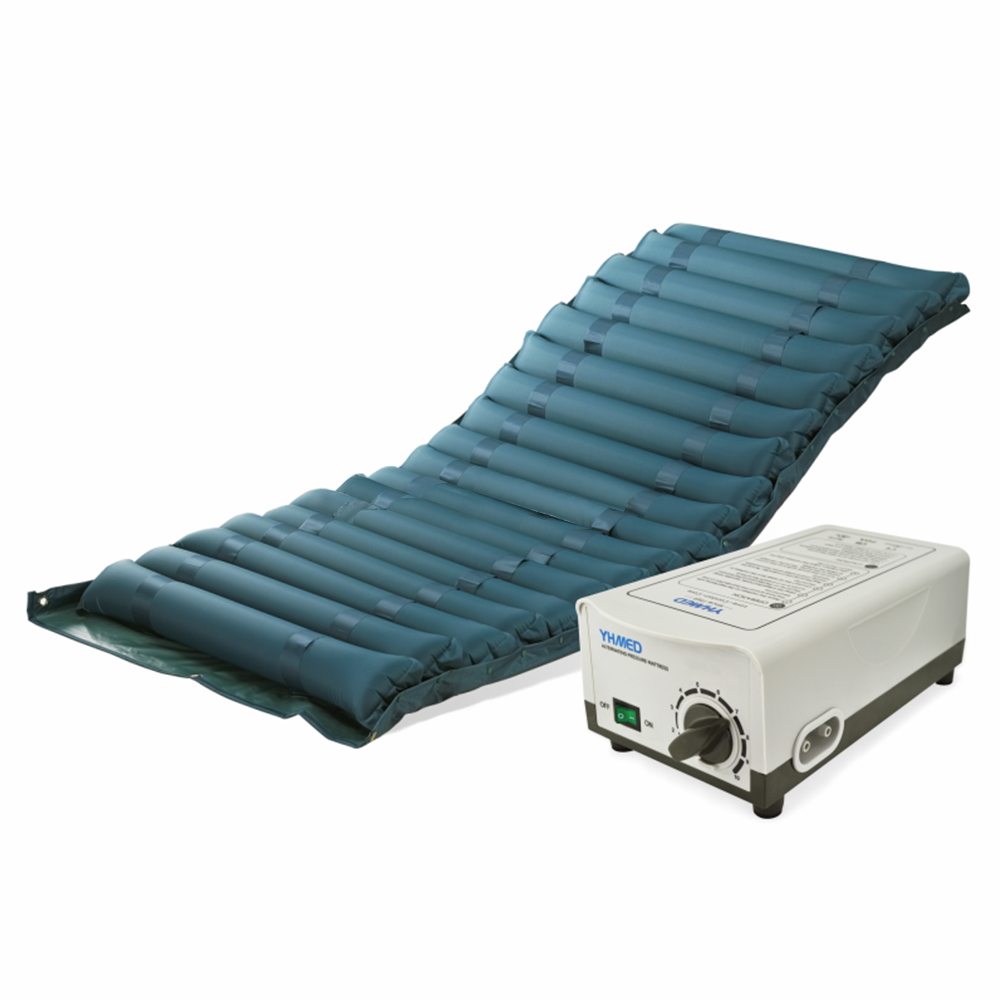

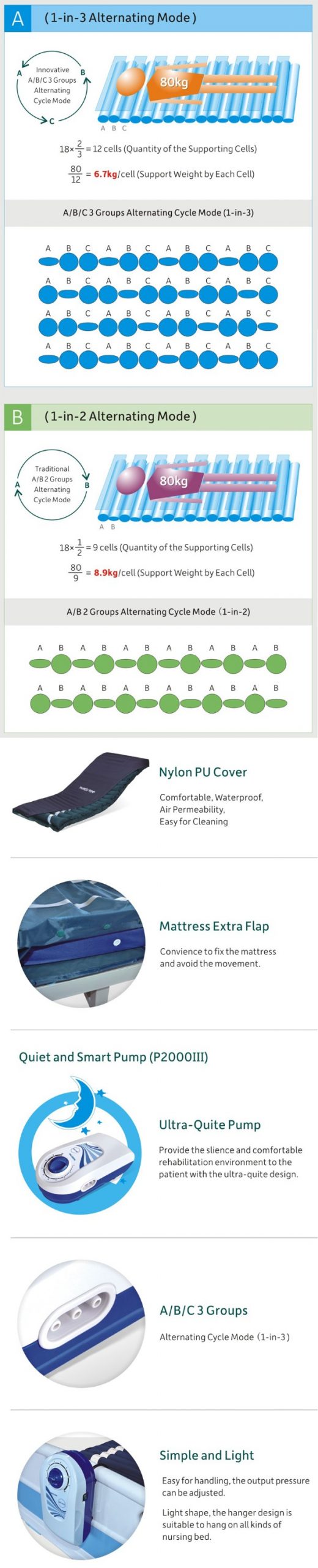

(A) Alternating Pressure Mattress is made up by 18 pcs of 11cm/4.3” cells. The Alternating System includes A/B/C 3 groups of cells design (6 cells per group). During alternating, there always have 2 groups of cells keep inflating, it means that it will have 12 cells can share and support the patient’s weight. Compared with the A/B 2 groups alternating model
(B) (just have 9 cells keep inflating at the same time), the share weight of the A/B/C Cycle Mode alternating mattress will be more average. The patient can feel more comfortable and have better sleeping quality.
Technical Parameters Of The Mattress
| Material Cover:Nylon+PU
Cell:Nylon+PVC |
| Cell 11cm/4.5”Inflation Cell*18Pieces+1Free Spare Cell |
| Inflation Size 200*90*11cm |
| Material thickness 0.34mm |
| Pressure ulcer stage I,II |
| Mattress system Overlay |
| Weight support 145kg |
| Warranty 12 Months |
Technical Parameters Of The Pump
The most quiet pump in China
| Alternating Cycle Mode | A/B/C Alternating (1-in-3) |
| Electrical | AC 110V/220V 50Hz/60Hz |
| Pressure range | 55-120 mmHg |
| Cycle time | 12 min |
| Air output | 7-8L/min |
| Dimensions(L*W*H) | 27*13*10.5 cm |
| Test Duration | 24 Hours |
| Synchronous Motor | TW Ann Yih Brand |
| Warranty | 24 Months |
